Parallel shaft Gearboxes
Model | F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 |
نسبت | 3.77~267.43 (imax:18510) |
نیروی ورودی | 0.12~160 kW |
Output torque | 200~18000 N.m |
شرح
Parallel shaft helical geared motors F series are compact and powerful which are perfect for all your design-related applications where you rely on space-saving components. They provide optimum installation conditions thanks to their slim design.
By opting for one of our gearmotors, you are already saving time and money with this selection and project planning. This is because our modular system enables a multitude of combination options for gear units and motors. You can therefore reduce operating costs, count on a long service life and benefit from simplified maintenance.
خصوصیات
- طرح بهینه شده ، ترکیب ماژول را اتخاذ کنید.
- Extra-slim parallel shaft helical gear motors are the perfect solution when space is limited, it is typically used in travelling and lifting equipment.
- این فناوری پیشرفته سنگ زنی و فناوری اصلاح شکل را که دارای ظرفیت تحمل بالایی ، عملکرد قابل اعتماد و نویز کم است ، اتخاذ می کند.
- عملکرد آب بندی خوب ، مناسب برای طیف گسترده ای از شرایط کار.
- راندمان انتقال بالا و صرفه جویی در مصرف انرژی.
- مقرون به صرفه و آسان برای نگهداری.
فرم محصول
- Transmission Stage: 2 stage or 3 stage.
- Assembly Form: Foot mounted, Flange mounted, B14 small flange mounted, torque arm mounted.
- Right Angle Output: Solid shaft, Hollow shaft ( flat key, shrink disk, involute spline), Splined solid shaft
داده های فنی
نسبت | 3.77-276.77 |
نیروی ورودی | 0.12-200KW |
Output torque | 3.5-21700N.m |
Output speed | 5-352rpm |
Mounting type | Foot mounted, foot mounted with solid shaft, output flange mounted, hollow shaft mounted, B5 flange mounted with hollow shaft, foot mounted with hollow shaft, B14 flange mounted with hollow shaft, foot mounted with splined hole, foot mounted with shrink disk, hollow shaft mounted with anti-torque arm. |
Input Method | Flange input(AM), shaft input(AD), AC motor input, or AQA servo motor |
Brake Release | HF-manual release(lock in the brake release position), HR-manual release(autom-atic braking position) |
Thermistor | TF (Thermistor protection PTC thermisto) TH (Thermistor protection Bimetal swotch) |
جایگاه نصب | M1, M2, M3, M4, M5, M6 |
نوع | F37-F157 |
Output shaft dis. | 25mm, 30mm, 35mm, 40mm, 50mm, 60mm, 70mm, 90mm, 110mm, 120mm |
Housing material | HT200 high-strength cast iron from F37, F47, F57, F67, F77, F87 |
Housing material | HT250 High strength cast iron from F97 F107, F127, F157, |
Heat treatment technology | carbonizing and hardening treatment |
Efficiency | 92%-94% |
Lubricant | VG220 |
Protection Class | IP55, F class |
رتبه بندی توان ورودی و گشتاور حداکثر
اندازه |
F37 | F47 | F57 | F67 | F77 | F87 | F97 | F107 | F127 |
F157 |
Structure |
F FA FF FAF FAZ |
|||||||||
Input power rating (kw) |
0.18-3 | 0.18-3 | 0.18-5.5 | 0.37- 5.5 | 0.18-11 | 0.75-22 | 1.1-30 | 2.2-45 | 7.5-90 |
11-200 |
نسبت |
3.81- 128.51 |
5.06- 170.27 |
5.18- 199.70 |
4.21- 196.46 |
4.20- 243.46 |
4.12- 270.68 |
4.68- 270.64 |
6.20- 255.25 |
4.63- 172.33 |
12.07- |
Max torque (N.m) |
200 | 400 | 600 | 820 | 1500 | 3000 | 4300 | 7840 | 12000 |
18000 |
AVAILABLE MODELS (Parallel Shaft Helical Geared motor)
Version
|
اندازه
|
||||||
27
|
37
|
47
|
57
|
67
|
77
|
||
F..
|
Foot-mounted parallel shaft helical geared motor
|
F27
|
F37
|
F47
|
F57
|
F67
|
F77
|
FA..B
|
Foot-mounted / Hollow shaft parallel shaft helical geared motor
|
FA27B
|
FA37B
|
FA47B
|
FA57B
|
FA67B
|
FA77B
|
FV..B
|
Foot-mounted / Hollow shaft / Splined hollow shaft
|
FV27B
|
FV37B
|
FV47B
|
FV57B
|
FV67B
|
FV77B
|
FH..B
|
Foot-mounted / Hollow shaft / Shrink disc
|
FH27B
|
FH37B
|
FH47B
|
FH57B
|
FH67B
|
FH77B
|
FF..
|
B5 flange-mounted
|
FF27
|
FF37
|
FF47
|
FF57
|
FF67
|
FF77
|
FAF..
|
B5 Flange-mounted / Hollow shaft
|
FAF27
|
FAF37
|
FAF47
|
FAF57
|
FAF67
|
FAF77
|
FVF..
|
B5 Flange-mounted / Hollow shaft / Splined hollow shaft
|
FVF27
|
FVF37
|
FVF47
|
FVF57
|
FVF67
|
FVF77
|
FHF..
|
B5 Flange-mounted / Hollow shaft / Shrink disc
|
FHF27
|
FHF37
|
FHF47
|
FHF57
|
FHF67
|
FHF77
|
FA..
|
Hollow shaft parallel shaft gearboxes
|
FA27
|
FA37
|
FA47
|
FA57
|
FA67
|
FA77
|
FV..
|
Hollow shaft / Splined hollow shaft
|
FV27
|
FV37
|
FV47
|
FV57
|
FV67
|
FV77
|
FH..
|
Hollow shaft / Shrink disc
|
FH27
|
FH37
|
FH47
|
FH57
|
FH67
|
FH77
|
FAT..
|
Hollow shaft / Torque arm parallel shaft gearboxes
|
FAT27
|
FAT37
|
FAT47
|
FAT57
|
FAT67
|
FAT77
|
FAZ..
|
B14 Flange-mounted / Hollow shaft
|
FAZ27
|
FAZ37
|
FAZ47
|
FAZ57
|
FAZ67
|
FAZ77
|
FVZ..
|
B14 Flange-mounted / Hollow shaft / Splined hollow shaft
|
FA27B
|
FA37B
|
FVZ47
|
FVZ57
|
FVZ67
|
FVZ77
|
FHZ..
|
B14 Flange-mounted / Hollow shaft / Shrink disc
|
FV27B
|
FV37B
|
FHZ47
|
FHZ57
|
FHZ67
|
FHZ77
|
Version
|
اندازه
|
|||||
87
|
97
|
107
|
127
|
157
|
||
F..
|
Foot-mounted parallel shaft gearboxes
|
F87
|
F97
|
F107
|
F127
|
F157
|
FA..B
|
Foot-mounted / Hollow shaft parallel shaft gearboxes
|
FA87B
|
FA97B
|
FA107B
|
FA127B
|
FA157B
|
FV..B
|
Foot-mounted / Hollow shaft / Splined hollow shaft
|
FV87B
|
FV97B
|
FV107B
|
FV127B
|
FV157B
|
FH..B
|
Foot-mounted / Hollow shaft / Shrink disc
|
FH87B
|
FH97B
|
FH107B
|
FH127B
|
FH157B
|
FF..
|
B5 flange-mounted
|
FF87
|
FF97
|
FF107
|
FF127
|
FF157
|
FAF..
|
B5 Flange-mounted / Hollow shaft
|
FAF87
|
FAF97
|
FAF107
|
FAF127
|
FAF157
|
FVF..
|
B5 Flange-mounted / Hollow shaft / Splined hollow shaft
|
FVF87
|
FVF97
|
FVF107
|
FVF127
|
FVF157
|
FHF..
|
B5 Flange-mounted / Hollow shaft / Shrink disc
|
FHF87
|
FHF97
|
FHF107
|
FHF127
|
FHF157
|
FA..
|
Hollow shaft
|
FA87
|
FA97
|
FA107
|
FA127
|
FA157
|
FV..
|
Hollow shaft / Splined hollow shaft
|
FV87
|
FV97
|
FV107
|
FV127
|
FV157
|
FH..
|
Hollow shaft / Shrink disc
|
FH87
|
FH97
|
FH107
|
FH127
|
FH157
|
FAT..
|
Hollow shaft / Torque arm
|
FAT87
|
FAT97
|
FAT107
|
FAT127
|
FAT157
|
FAZ..
|
B14 Flange-mounted / Hollow shaft
|
FAZ87
|
FAZ97
|
FAZ107
|
FAZ127
|
FAZ157
|
FVZ..
|
B14 Flange-mounted / Hollow shaft / Splined hollow shaft
|
FVZ87
|
FVZ97
|
FVZ107
|
FVZ127
|
FVZ157
|
FHZ..
|
B14 Flange-mounted / Hollow shaft / Shrink disc
|
FHZ87
|
FHZ97
|
FHZ107
|
FHZ127
|
FHZ157
|
نوع و تعیین
- کاهش دهنده سرعت موتور به طور مستقیم: ج-A-ج-97-62.55-حرف-5.5 کیلو وات-4p-m1-j1
- Directly-connected motor Speed reducer(Combination type): K-A-ج-97-RF-ج-57-62.55-حرف-5.5 کیلو وات-4p-m1-j1
- With motor and input flange: F-A-ج-97-62.55-AM132B5-حرف-5.5 کیلو وات-4p-m1-j1
- Input flange-mounted, without motor: F-A-ج-97-62.55-AM132B5-m1-j1
- With input shaft: F-A-ج-97-62.55-AD4-m1
توجه:
AM132B5: ابعاد فلنج IEC (لطفاً به کاتالوگ ما مراجعه کنید)
AD4: شافت ورودی (AD1 ، AD2 ، AD3 ، AD4 ، AD5 ، AD6 ، AD7 ، AD8)
کد موتور:
*Y: موتورهای استاندارد 3 فاز
*YB: موتورهای ضد انفجار
* بله: موتورهای ترمز
*YD: موتورهای چند سرعته
* YVP: موتورهای فرکانس متغیر
*YCT: موتورهای تنظیم سرعت الکترومغناطیسی
*سال: موتورهای جرثقیل و متالورژی
*yvpej: فرکانس متغیر و موتورهای ترمز
*YG: موتورهای جدول غلتکی
*YGPEJ: فرکانس متغیر و موتورهای میز ترمز و غلتکی
جایگاه نصب
موقعیت جعبه ترمینال موتور
ترسیم ساختار
طراحی مدولار

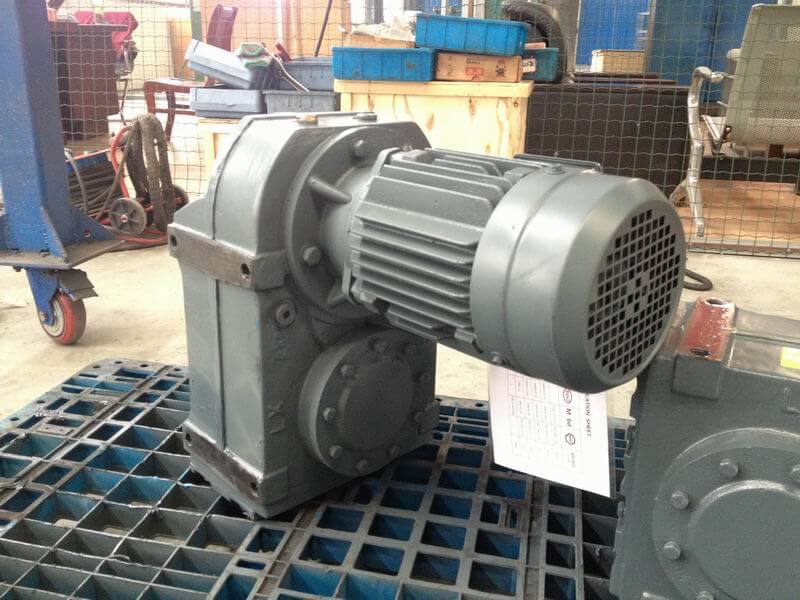

تصاویر محصول
برنامه:
F series parallel shaft helical gearmotors به طور گسترده ای در صنعت سبک ، مواد غذایی ، آبجو و نوشیدنی ، صنایع شیمیایی ، پله برقی ، تجهیزات ذخیره سازی اتوماتیک ، ساخت و ساز ، ماشین آلات ، متالورژی آهن و فولاد ، ساخت کاغذ ، ماشین آلات پانل مبتنی بر چوب ، ماشین آلات خودرو ، ماشین آلات توتون ، تهیه کننده آب ، چاپ و بسته بندی ، سکو ، نساجی ، مواد ساختمانی ، مواد ساختمانی ، تهیه اختیارات ساختمانی ، ماشینکاری ، تهیه اختراعات ، ماشین سازی ، تهیه.
