FAF107 Hollow Shaft Helical Gearmotor SEW

FAF series Hollow Shaft Parallel Shaft Helical Geared Motor

Model	FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157, FAF57RF37, FAF67RF37, FAF77RF37, FAF87RF57, FAF97RF57, FAF107RF77, FAF127RF77, FAF127RF87, FAF157RF97
نسبت	3.77~267.43 （imax:18510）
نیروی ورودی	0.12~160 kW
Output torque	200~18000 N.m

دانلود کاتالوگ

خصوصیات

طرح بهینه شده ، ترکیب ماژول را اتخاذ کنید.
Extra-slim parallel shaft helical gear motors are the perfect solution when space is limited, it is typically used in travelling and lifting equipment.
این فناوری پیشرفته سنگ زنی و فناوری اصلاح شکل را که دارای ظرفیت تحمل بالایی ، عملکرد قابل اعتماد و نویز کم است ، اتخاذ می کند.
عملکرد آب بندی خوب ، مناسب برای طیف گسترده ای از شرایط کار.
راندمان انتقال بالا و صرفه جویی در مصرف انرژی.
مقرون به صرفه و آسان برای نگهداری.

فرم محصول

Transmission Stage: 2 stage or 3 stage.
Assembly Form: Foot mounted, Flange mounted, B14 small flange mounted, torque arm mounted.
Right Angle Output: Solid shaft, Hollow shaft ( flat key, shrink disk, involute spline), Splined solid shaft

داده های فنی

Size: FA37~FA157
Technical Data(N·m): 200~18000
Gear Ratio: 3.77~267.43 （imax:18510）
Input Power(kW)：0.12~160

رتبه بندی توان ورودی و گشتاور حداکثر

اندازه	F37	F47	F57	F67	F77	F87	F97	F107	F127	F157
Structure	F FA FF FAF FAZ Parallel Shaft Helical Geared Motor
Input power rating (kw)	0.18-3	0.18-3	0.18-5.5	0.37- 5.5	0.18-11	0.75-22	1.1-30	2.2-45	7.5-90	11-200
نسبت	3.81- 128.51	5.06- 170.27	5.18- 199.70	4.21- 196.46	4.20- 243.46	4.12- 270.68	4.68- 270.64	6.20- 255.25	4.63- 172.33	12.07- 198.14
Max torque (N.m)	200	400	600	820	1500	3000	4300	7840	12000	18000

مدل های موجود

Version		اندازه
Version		27	37	47	57	67	77
F..	Foot-mounted parallel shaft helical gearmotor	F27 gearbox	F37 gearbox	F47 gearbox	F57 gearbox	F67 gearbox	F77 gearbox
FA..B	Foot-mounted / Hollow shaft parallel shaft helical gearmotor	FA27B gearbox	FA37B gearbox	FA47B gearbox	FA57B gearbox	FA67B gearbox	FA77B gearbox
FV..B	Foot-mounted / Hollow shaft / Splined hollow shaft parallel shaft helical gearmotor	FV27B gearbox	FV37B gearbox	FV47B gearbox	FV57B gearbox	FV67B gearbox	FV77B gearbox
FH..B	Foot-mounted / Hollow shaft / Shrink disc parallel shaft helical gearmotor	FH27B gearbox	FH37B gearbox	FH47B gearbox	FH57B gearbox	FH67B gearbox	FH77B gearbox
FF..	B5 flange-mounted parallel shaft helical gearmotor	FF27 gearbox	FF37 gearbox	FF47 gearbox	FF57 gearbox	FF67 gearbox	FF77 gearbox
FAF..	B5 Flange-mounted / Hollow shaft parallel shaft helical gearmotor	FAF27 gearbox	FAF37 gearbox	FAF47 gearbox	FAF57 gearbox	FAF67 gearbox	FAF77 gearbox
FVF..	B5 Flange-mounted / Hollow shaft / Splined hollow shaft parallel shaft helical gearmotor	FVF27 gearbox	FVF37 gearbox	FVF47 gearbox	FVF57 gearbox	FVF67 gearbox	FVF77 gearbox
FHF..	B5 Flange-mounted / Hollow shaft / Shrink disc parallel shaft helical gearmotor	FHF27 gearbox	FHF37 gearbox	FHF47 gearbox	FHF57 gearbox	FHF67 gearbox	FHF77 gearbox
FA..	Hollow shaft parallel shaft helical gearmotor	FA27 gearbox	FA37 gearbox	FA47 gearbox	FA57 gearbox	FA67 gearbox	FA77 gearbox
FV..	Hollow shaft / Splined hollow shaft parallel shaft helical gearmotor	FV27 gearbox	FV37 gearbox	FV47 gearbox	FV57 gearbox	FV67 gearbox	FV77 gearbox
FH..	Hollow shaft / Shrink disc parallel shaft helical gearmotor	FH27 gearbox	FH37 gearbox	FH47 gearbox	FH57 gearbox	FH67 gearbox	FH77 gearbox
FAT..	Hollow shaft / Torque arm parallel shaft helical gearmotor	FAT27 gearbox	FAT37 gearbox	FAT47 gearbox	FAT57 gearbox	FAT67 gearbox	FAT77 gearbox
FAZ..	B14 Flange-mounted / Hollow shaft parallel shaft helical gearmotor	FAZ27 gearbox	FAZ37 gearbox	FAZ47 gearbox	FAZ57 gearbox	FAZ67 gearbox	FAZ77 gearbox
FVZ..	B14 Flange-mounted / Hollow shaft / Splined hollow shaft parallel shaft helical gearmotor	FA27B gearbox	FA37B gearbox	FVZ47 gearbox	FVZ57 gearbox	FVZ67 gearbox	FVZ77 gearbox
FHZ..	B14 Flange-mounted / Hollow shaft / Shrink disc parallel shaft helical gearmotor	FV27B gearbox	FV37B gearbox	FHZ47 gearbox	FHZ57 gearbox	FHZ67 gearbox	FHZ77 gearbox

Version		اندازه
Version		87	97	107	127	157
F..	Foot-mounted parallel shaft helical gearmotor	F87 gearbox	F97 gearbox	F107 gearbox	F127 gearbox	F157 gearbox
FA..B	Foot-mounted / Hollow shaft parallel shaft helical gearmotor	FA87B gearbox	FA97B gearbox	FA107B gearbox	FA127B gearbox	FA157B gearbox
FV..B	Foot-mounted / Hollow shaft / Splined hollow shaft parallel shaft helical gearmotor	FV87B gearbox	FV97B gearbox	FV107B gearbox	FV127B gearbox	FV157B gearbox
FH..B	Foot-mounted / Hollow shaft / Shrink disc parallel shaft helical gearmotor	FH87B gearbox	FH97B gearbox	FH107B gearbox	FH127B gearbox	FH157B gearbox
FF..	B5 flange-mounted parallel shaft helical gearmotor	FF87 gearbox	FF97 gearbox	FF107 gearbox	FF127 gearbox	FF157 gearbox
FAF..	B5 Flange-mounted / Hollow shaft parallel shaft helical gearmotor	FAF87 gearbox	FAF97 gearbox	FAF107 gearbox	FAF127 gearbox	FAF157 gearbox
FVF..	B5 Flange-mounted / Hollow shaft / Splined hollow shaft parallel shaft helical gearmotor	FVF87 gearbox	FVF97 gearbox	FVF107 gearbox	FVF127 gearbox	FVF157 gearbox
FHF..	B5 Flange-mounted / Hollow shaft / Shrink disc parallel shaft helical gearmotor	FHF87 gearbox	FHF97 gearbox	FHF107 gearbox	FHF127 gearbox	FHF157 gearbox
FA..	Hollow shaft parallel shaft helical gearmotor	FA87 gearbox	FA97 gearbox	FA107 gearbox	FA127 gearbox	FA157 gearbox
FV..	Hollow shaft / Splined hollow shaft parallel shaft helical gearmotor	FV87 gearbox	FV97 gearbox	FV107 gearbox	FV127 gearbox	FV157 gearbox
FH..	Hollow shaft / Shrink disc parallel shaft helical gearmotor	FH87 gearbox	FH97 gearbox	FH107 gearbox	FH127 gearbox	FH157 gearbox
FAT..	Hollow shaft / Torque arm parallel shaft helical gearmotor	FAT87 gearbox	FAT97 gearbox	FAT107 gearbox	FAT127 gearbox	FAT157 gearbox
FAZ..	B14 Flange-mounted / Hollow shaft parallel shaft helical gearmotor	FAZ87 gearbox	FAZ97 gearbox	FAZ107 gearbox	FAZ127 gearbox	FAZ157 gearbox
FVZ..	B14 Flange-mounted / Hollow shaft / Splined hollow shaft parallel shaft helical gearmotor	FVZ87 gearbox	FVZ97 gearbox	FVZ107 gearbox	FVZ127 gearbox	FVZ157 gearbox
FHZ..	B14 Flange-mounted / Hollow shaft / Shrink disc parallel shaft helical gearmotor	FHZ87 gearbox	FHZ97 gearbox	FHZ107 gearbox	FHZ127 gearbox	FHZ157 gearbox

نوع و تعیین

کاهش دهنده سرعت موتور به طور مستقیم: ج－A－ج－97－62.55－حرف－5.5 کیلو وات－4p－m1－j1
Directly-connected motor Speed reducer(Combination type): K－A－ج－97－RF－ج－57－62.55－حرف－5.5 کیلو وات－4p－m1－j1
With motor and input flange: F－A－ج－97－62.55－AM132B5－حرف－5.5 کیلو وات－4p－m1－j1
Input flange-mounted, without motor: F－A－ج－97－62.55－AM132B5－m1－j1
With input shaft: F－A－ج－97－62.55－AD4－m1

توجه:
AM132B5: ابعاد فلنج IEC (لطفاً به کاتالوگ ما مراجعه کنید)
AD4: شافت ورودی (AD1 ، AD2 ، AD3 ، AD4 ، AD5 ، AD6 ، AD7 ، AD8)

کد موتور:

*Y: موتورهای استاندارد 3 فاز
*YB: موتورهای ضد انفجار
* بله: موتورهای ترمز
*YD: موتورهای چند سرعته
* YVP: موتورهای فرکانس متغیر
*YCT: موتورهای تنظیم سرعت الکترومغناطیسی
*سال: موتورهای جرثقیل و متالورژی
*yvpej: فرکانس متغیر و موتورهای ترمز
*YG: موتورهای جدول غلتکی
*YGPEJ: فرکانس متغیر و موتورهای میز ترمز و غلتکی

جایگاه نصب

موقعیت جعبه ترمینال موتور

ترسیم ساختار

طراحی مدولار

تصاویر محصول

Parallel shaft helical gear reducer FA77

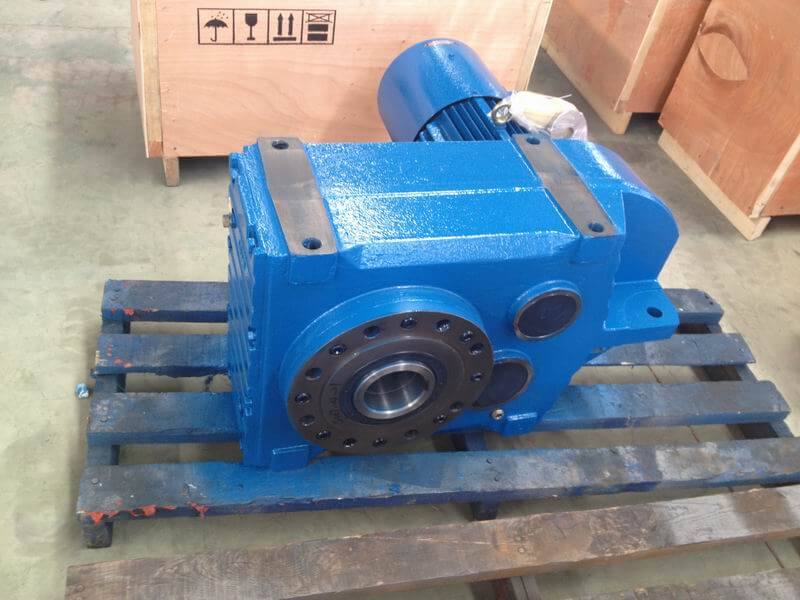

FA Hollow shaft Parallel shaft helical gearmotor

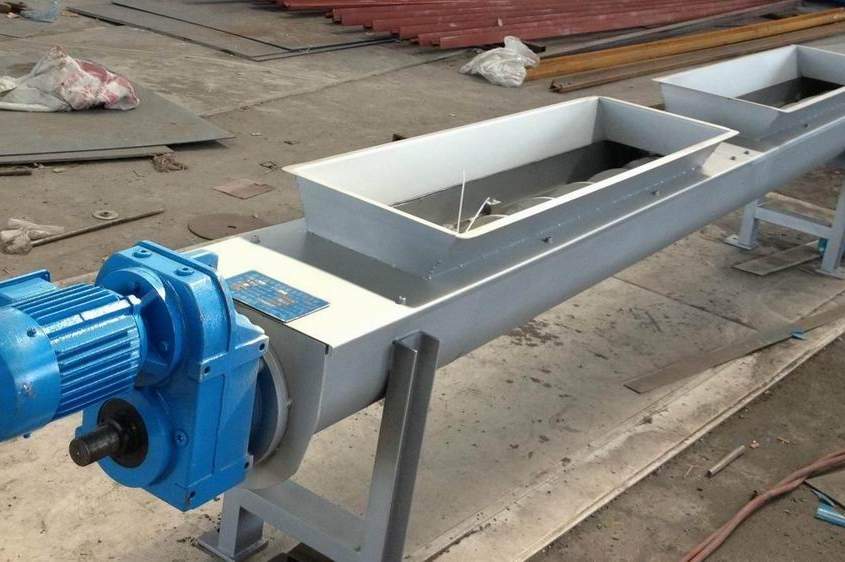

Parallel Shaft Helical Gearmotor for shaftless screw conveyor

برنامه:

The products are widely used in light industry, food, beer and beverage, chemical industry, escalators, automatic storage equipment, construction, machinery, iron and steel metallurgy, paper-making, wood-based panel machinery, automobile manufacturing, tobacco machinery, water conservancy, printing and packaging, pharmaceutical, textile, building materials, logistics, feed machinery, environmental protection and other fields.
