FH/FHZ series Hollow Shaft Shrink Disc Parallel Shaft Helical Geared Motor
| Model | FH37, FH47, FH57, FH67, FH77, FH87, FH97, FH107, FH127, FH157, FH57RF37, FH67RF37, FH77RF37, FH87RF57, FH97RF57, FH107RF77, FH127RF77, FH127RF87, FH157RF97 |
| 비율 | 3.77~267.43 （imax:18510） |
| 입력 전원 | 0.12~160 kW |
| Output torque | 200~18000 N.m |
형질
- Adopt optimized design, module combination.
- Extra-slim parallel shaft helical gear motors are the perfect solution when space is limited, it is typically used in travelling and lifting equipment.
- It adopts advanced grinding technology and shape modification technology, which has high bearing capacity, reliable operation and low noise.
- Good sealing performance, suitable for a wide range of working conditions.
- High transmission efficiency and energy saving.
- Cost-effective and easy to maintain.
제품 형태
- Transmission Stage: 2 stage or 3 stage.
- Assembly Form: Foot mounted, Flange mounted, B14 small flange mounted, torque arm mounted.
- Right Angle Output: Solid shaft, Hollow shaft ( flat key, shrink disk, involute spline), Splined solid shaft
기술 데이터
- Size: FH37~FH157
- Technical Data(N·m): 200~18000
- Gear Ratio: 3.77~267.43 （imax:18510）
- Input Power(kW)：0.12~160
Input Power Rating and Max Torque
|
Size |
F37 | F47 | F57 | F67 | F77 | F87 | F97 | F107 | F127 |
F157 |
|
Structure |
F FA FF FAF FAZ |
|||||||||
|
Input power rating (kw) |
0.18-3 | 0.18-3 | 0.18-5.5 | 0.37- 5.5 | 0.18-11 | 0.75-22 | 1.1-30 | 2.2-45 | 7.5-90 |
11-200 |
|
비율 |
3.81- 128.51 |
5.06- 170.27 |
5.18- 199.70 |
4.21- 196.46 |
4.20- 243.46 |
4.12- 270.68 |
4.68- 270.64 |
6.20- 255.25 |
4.63- 172.33 |
12.07- |
|
Max torque (N.m) |
200 | 400 | 600 | 820 | 1500 | 3000 | 4300 | 7840 | 12000 |
18000 |
AVAILABLE MODELS
|
Version
|
Size
|
||||||
|
27
|
37
|
47
|
57
|
67
|
77
|
||
|
F..
|
Foot-mounted
|
F27
|
F37
|
F47
|
F57
|
F67
|
F77
|
|
FA..B
|
Foot-mounted / Hollow shaft
|
FA27B
|
FA37B
|
FA47B
|
FA57B
|
FA67B
|
FA77B
|
|
FV..B
|
Foot-mounted / Hollow shaft / Splined hollow shaft
|
FV27B
|
FV37B
|
FV47B
|
FV57B
|
FV67B
|
FV77B
|
|
FH..B
|
Foot-mounted / Hollow shaft / Shrink disc
|
FH27B
|
FH37B
|
FH47B
|
FH57B
|
FH67B
|
FH77B
|
|
FF..
|
B5 flange-mounted
|
FF27
|
FF37
|
FF47
|
FF57
|
FF67
|
FF77
|
|
FAF..
|
B5 Flange-mounted / Hollow shaft
|
FAF27
|
FAF37
|
FAF47
|
FAF57
|
FAF67
|
FAF77
|
|
FVF..
|
B5 Flange-mounted / Hollow shaft / Splined hollow shaft
|
FVF27
|
FVF37
|
FVF47
|
FVF57
|
FVF67
|
FVF77
|
|
FHF..
|
B5 Flange-mounted / Hollow shaft / Shrink disc
|
FHF27
|
FHF37
|
FHF47
|
FHF57
|
FHF67
|
FHF77
|
|
FA..
|
Hollow shaft
|
FA27
|
FA37
|
FA47
|
FA57
|
FA67
|
FA77
|
|
FV..
|
Hollow shaft / Splined hollow shaft
|
FV27
|
FV37
|
FV47
|
FV57
|
FV67
|
FV77
|
|
FH..
|
Hollow shaft / Shrink disc
|
FH27
|
FH37
|
FH47
|
FH57
|
FH67
|
FH77
|
|
FAT..
|
Hollow shaft / Torque arm
|
FAT27
|
FAT37
|
FAT47
|
FAT57
|
FAT67
|
FAT77
|
|
FAZ..
|
B14 Flange-mounted / Hollow shaft
|
FAZ27
|
FAZ37
|
FAZ47
|
FAZ57
|
FAZ67
|
FAZ77
|
|
FVZ..
|
B14 Flange-mounted / Hollow shaft / Splined hollow shaft
|
FA27B
|
FA37B
|
FVZ47
|
FVZ57
|
FVZ67
|
FVZ77
|
|
FHZ..
|
B14 Flange-mounted / Hollow shaft / Shrink disc
|
FV27B
|
FV37B
|
FHZ47
|
FHZ57
|
FHZ67
|
FHZ77
|
|
Version
|
Size
|
|||||
|
87
|
97
|
107
|
127
|
157
|
||
|
F..
|
Foot-mounted
|
F87
|
F97
|
F107
|
F127
|
F157
|
|
FA..B
|
Foot-mounted / Hollow shaft
|
FA87B
|
FA97B
|
FA107B
|
FA127B
|
FA157B
|
|
FV..B
|
Foot-mounted / Hollow shaft / Splined hollow shaft
|
FV87B
|
FV97B
|
FV107B
|
FV127B
|
FV157B
|
|
FH..B
|
Foot-mounted / Hollow shaft / Shrink disc
|
FH87B
|
FH97B
|
FH107B
|
FH127B
|
FH157B
|
|
FF..
|
B5 flange-mounted
|
FF87
|
FF97
|
FF107
|
FF127
|
FF157
|
|
FAF..
|
B5 Flange-mounted / Hollow shaft
|
FAF87
|
FAF97
|
FAF107
|
FAF127
|
FAF157
|
|
FVF..
|
B5 Flange-mounted / Hollow shaft / Splined hollow shaft
|
FVF87
|
FVF97
|
FVF107
|
FVF127
|
FVF157
|
|
FHF..
|
B5 Flange-mounted / Hollow shaft / Shrink disc
|
FHF87
|
FHF97
|
FHF107
|
FHF127
|
FHF157
|
|
FA..
|
Hollow shaft
|
FA87
|
FA97
|
FA107
|
FA127
|
FA157
|
|
FV..
|
Hollow shaft / Splined hollow shaft
|
FV87
|
FV97
|
FV107
|
FV127
|
FV157
|
|
FH..
|
Hollow shaft / Shrink disc
|
FH87
|
FH97
|
FH107
|
FH127
|
FH157
|
|
FAT..
|
Hollow shaft / Torque arm
|
FAT87
|
FAT97
|
FAT107
|
FAT127
|
FAT157
|
|
FAZ..
|
B14 Flange-mounted / Hollow shaft
|
FAZ87
|
FAZ97
|
FAZ107
|
FAZ127
|
FAZ157
|
|
FVZ..
|
B14 Flange-mounted / Hollow shaft / Splined hollow shaft
|
FVZ87
|
FVZ97
|
FVZ107
|
FVZ127
|
FVZ157
|
|
FHZ..
|
B14 Flange-mounted / Hollow shaft / Shrink disc
|
FHZ87
|
FHZ97
|
FHZ107
|
FHZ127
|
FHZ157
|
Type and Designation
- Directly-connected motor speed reducer: F－A－F－97－62.55－Y－5.5KW－4P－M1－J1
- Directly-connected motor Speed reducer(Combination type): K－A－F－97－RF－F－57－62.55－Y－5.5KW－4P－M1－J1
- With motor and input flange: F－A－F－97－62.55－AM132B5－Y－5.5KW－4P－M1－J1
- Input flange-mounted, without motor: F－A－F－97－62.55－AM132B5－M1－J1
- With input shaft: F－A－F－97－62.55－AD4－M1
Note:
AM132B5: Dimension of IEC flange ( please refer to our catalogue)
AD4: Input shaft (AD1, AD2, AD3, AD4, AD5, AD6, AD7, AD8)
Motor Code:
*Y: Standard 3-phase motors
*YB: Explosion-proof motors
* YEJ: Brake motors
*YD: Multi-speed motors
* YVP: Variable frequency motors
*YCT: Electromagnetic speed regulation motors
*YR: Crane and metallurgy motors
*YVPEJ: Variable frequency and brake motors
*YG: Roller table motors
*YGPEJ: Variable frequency and brake and roller table motors
Mounting Position
Motor Terminal Box Position
Structure Drawing
Modular Design

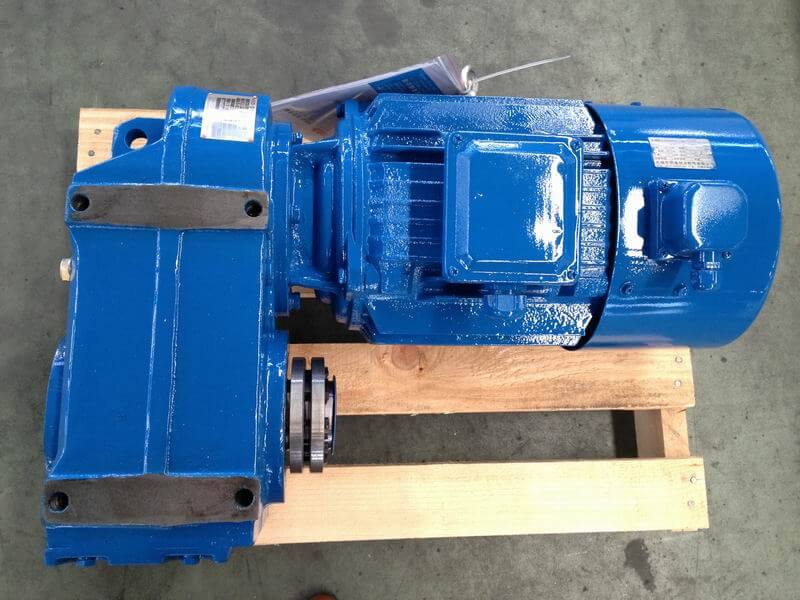

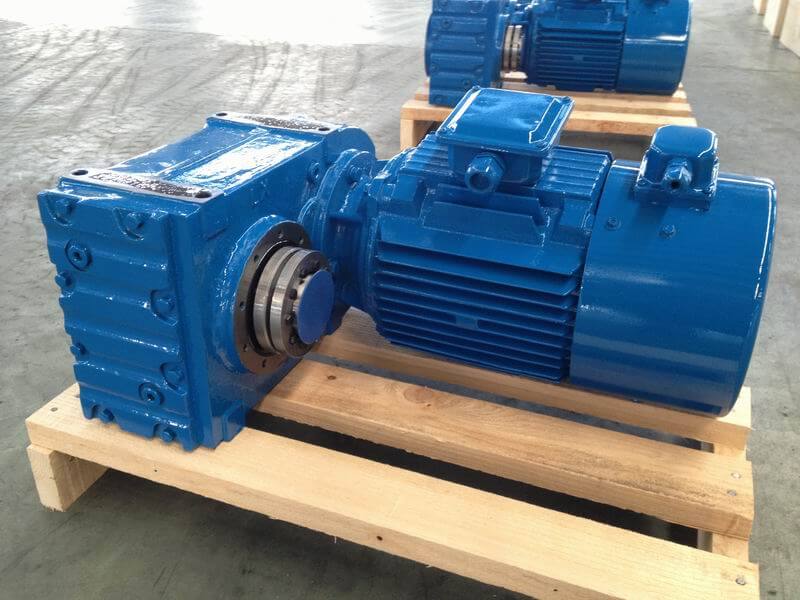

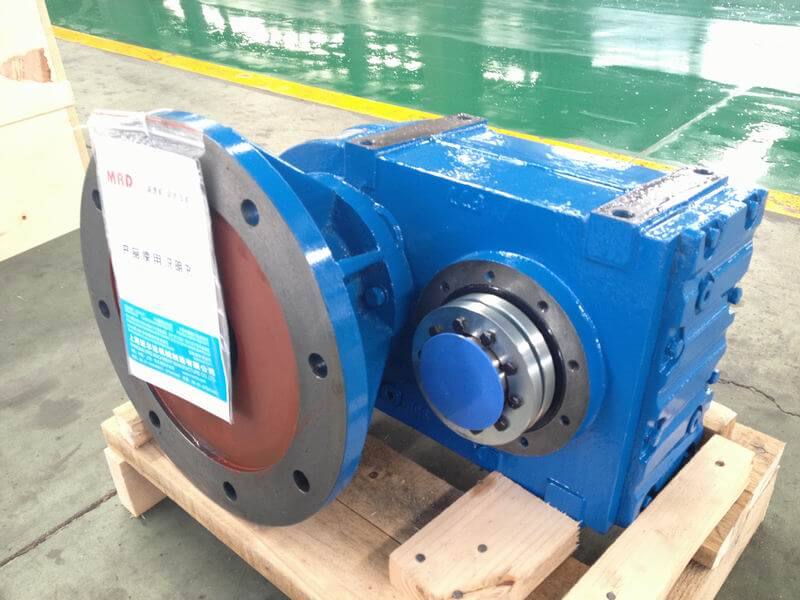

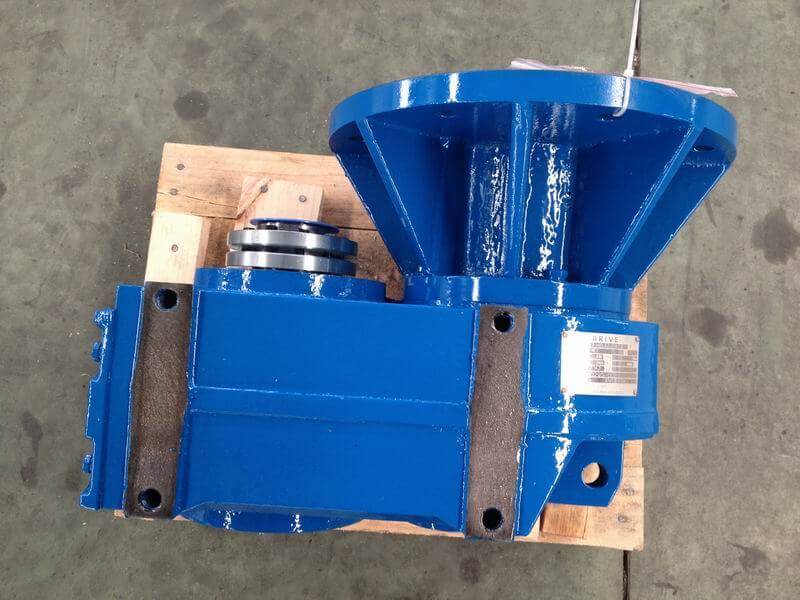

Product Pictures
애플리케이션:
The products are widely used in light industry, food, beer and beverage, chemical industry, escalators, automatic storage equipment, construction, machinery, iron and steel metallurgy, paper-making, wood-based panel machinery, automobile manufacturing, tobacco machinery, water conservancy, printing and packaging, pharmaceutical, textile, building materials, logistics, feed machinery, environmental protection and other fields.
