B4SV12 B4SV13 B4SV14 B4SV15 Quadruple Reduction Vertical Industrial Gearbox Reducer
Ngaahi fakangatangata fakatekinikale:
| Ngaahi Sipinga ʻOku Maʻu | B2SV04~B2SV18, B3SV04~B3SV26, B4SV05~B4SV26 |
| Fika | 5~400 |
| Malohi ʻo e input | 5.5~4400 kW |
| Torque lahi taha | 6.1~900 kN.m |
FAKAMATALA
B series helical bevel industrial gearboxes are designed based on module with right angle output shaft. The transmission torque distribution curve is excellent, suitable for heavy load conditions. It adopts advanced grinding technology and shape modification technology, which has high bearing capacity, reliable operation and low noise. The box body is made of high-quality casting to improve the mechanical strength and seismic performance of the reducer. Numerous mounting options are available.
B series right angle heavy duty industrial gear reducers are the same mounting dimensions as FLENDER(SIEMENS). There are high precision and high strength. Gear precision are above grade 6 (DIN), ground by profile grinding machine with power range: 3-5000kW and ratio:1.25-400.
NGAAHI ʻULUNGAANGA
- Adopt optimized modular design.
- Right angle shaft output form.
- The transmission torque distribution curve is excellent, suitable for heavy load conditions.
- ʻOku ne fakaʻaongaʻi ʻa e tekinolosia momosi maʻolunga mo e tekinolosia ʻo e liliu ʻo e fotunga, ʻa ia ʻoku maʻolunga ʻa e ivi ʻo e toʻotoʻo, ngaue falalaʻanga mo e longoaʻa maʻulalo.
- The box body is made of high-quality casting to improve the mechanical strength and seismic performance of the reducer.
- Numerous mounting options are available.
Foomu ʻo e Koloa
- Transmission Stage: 2 stage, 3 stage, 4 stage.
- Mounting: Horizontal mounted, Vertical mounted
- Parallel Output: Solid shaft, Hollow shaft ( flat key, shrink disk, involute spline), Splined solid shaft, flanged shaft
Fakamatala Fakatekinikale
- Size: B2SV04~B2SV18, B3SV04~B3SV26, B4SV05~B4SV26
- Technical Data(kN·m): 6.1~900
- Gear Ratio: 5~400
- Input Power(kW)：2.2~4400
NGAAHI SIPINGA ʻOKU LAVA KE MAʻU
|
Transmission stage |
Ratio(i) |
Models |
|
B2 |
5 – 14 |
B2SV4, B2SV5, B2SV6, B2SV7, B2SV8, B2SV9, B2SV10, B2SV11, B2SV12, B2SV13, B2SV14, B2SV15, B2SV16, B2SV17, B2SV18 |
| B3 |
12.5 – 90 |
B3SV4, B3SV5, B3SV6, B3SV7, B3SV8, B3SV9, B3SV10, B3SV11, B3SV12, B3SV13, B3SV14, B3SV15, B3SV16, B3SV17, B3SV18, B3SV19, B3SV20, B3SV21, B3SV22, B3SV23, B3SV24, B3SV25, B3SV26 |
| B4 |
80 – 400 |
B4SV4, B4SV5, B4SV6, B4SV7, B4SV8, B4SV9, B4SV10, B4SV11, B4SV12, B4SV13, B4SV14, B4SV15, B4SV16, B4SV17, B4SV18, B4SV19, B4SV20, B4SV21, B4SV22, B4SV23, B4SV24, B4SV25, B4SV26 |
Faʻahinga mo e Hingoa
Tuʻunga ʻo e Fokotuʻutuʻu
Structure Drawing
FOKOTUʻUTUʻU ʻO E MODULAR
PRODUCT PICTURES
B3SV14 Transmission Gearbox Flender standard
B3SH16 Industrial Gearboxes

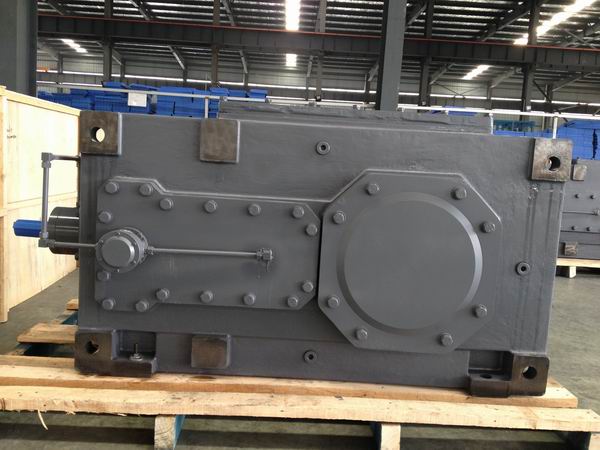

B4SV12-287-A Four Stage Heavy Duty Industrial Gearbox Reducer
B4SV12 Helical bevel gearboxes China manufacturer
Fakaʻaongaʻi:
Right angle bevel industrial gearbox reducer can modularly compose with other reducers and mechanical variator, get a large reduction ratio drive and variation, Conveyors, Cranes and Hoists, Elevators, Escalators, Fans, Gates, Irrigators, Machinery, Mixers, Packaging Equipment, Pools, Specialty Trucks and Vehicles, Wind Turbines, X-Ray Equipment, Airports, Boats and Yachts, Energy Installations (Deserts, Wind Farms), Foundries, Off-shore Oil Rigs, Mining Sites, Factories, Supermarkets, Refineries, Ports, Railways, Farms.
